PIPE END CAPS – ROUND, OVAL
MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43
CARBON, ALLOY, STAINLESS STEEL PIPE CAPS

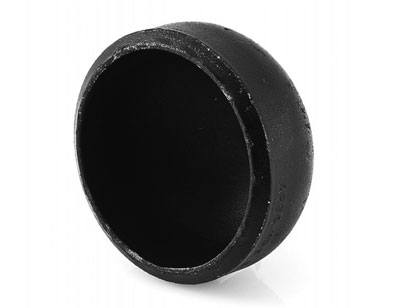

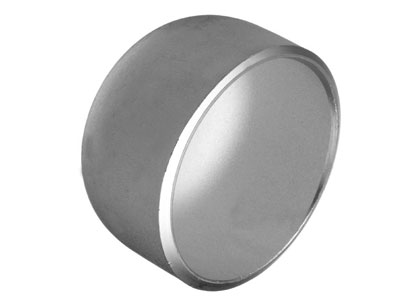

Steel Pipe Caps are the pipe fittings, which are mainly used as a plug to cover the end of a pipe. We can manufacture and supply pipe end caps in standard sizes, as well as in accordance with a specification of our customers.
Various grades of pipe caps manufactured by P M Jain includes 304/304L, 316/316L, 321, 347, 317L, 310S, 904L, Duplex, Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600. Our stocking program includes stainless steel pipe caps and carbon steel pipe caps of standard sizes and grades. Our specialty is to offer our customers with pipe caps in various shapes – round, square, rectangular or other special shapes.
Pipe End Cap Production Range
|Outside Diameter:||1/2″ – 48″|
|Wall Thickness:||2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS|
|Value Added Services:||Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering|
|Production Grades:||Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel|
|ASME:||ANSI B16.9, ANSI B16.28, MSS-SP-43|
|DIN:||DIN2605, DIN2615, DIN2616, DIN2617, DIN28011|
|ASTM A403 – ASME SA403||Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings|
|ASME B16.9||Factory-Made Wrought Fittings Buttwelding|
|ASME B16.25||Buttwelding Ends|
|ASME B16.28||Wrought Steel Short Radius Elbows and Buttwelding Returns|
|MSS SP-43||Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications|
Pipe Cap Material Grades
|Stainless Steel Pipe Cap||ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L|
|Carbon Steel Pipe Cap||ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.|
|Low Temperature Carbon Steel Pipe Cap||ASTM A420 WPL3, A420 WPL6|
|Alloy Steel Pipe Cap||ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91|
|Duplex Pipe Cap||ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462|
|Nickel Alloy Pipe Cap||ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )|
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At M P Jain Tubing Solutions, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
