What is a Flat Flanges

The Flat flanges has a gasket surface in the same plane as the bolting circle face. It is also known as flat face flange. Applications using flat face flanges are frequently those in which the mating flange or flanged fitting is made from a casting. Flat face flanges are used when the counter-flanges are flat face. This condition occurs mainly on connection to Cast Iron equipment, valves, and specialties. ASME B31.1 says that when connecting flat face cast iron flanges to carbon steel flanges, the raised face on the carbon steel flange must be removed, and that a full face gasket is required.

Flat Flanges Specifications

Type : Flat Face Flange
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Flat Flanges Materials & Grades

Materials : Standard, Grades
Stainless Steel Flat Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Flat Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Flat Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Flat Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Flat Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Flat Flanges : ASTM A350 LF2, LF3, LF6
High Yield Flat Flanges : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Flat Flanges : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Flat Flanges : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Flat Flanges : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Flat Flanges : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Flat Flanges according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of Flat Face Flanges Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 FF Flanges. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Flat Flange in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan etc.

Flat Flanges Price List

Following is Flat (FF) Flanges price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.

Latest Flat Flange Price in Inda

Reference:alibaba

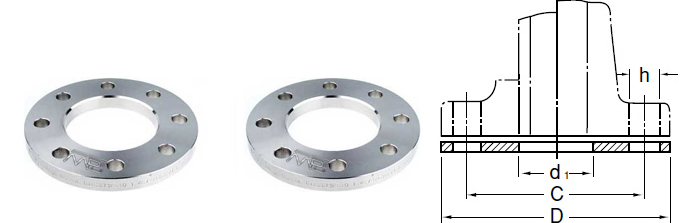

Flat Flanges Dimension and weight Chart:

Flat Flange Dimensions
DIN2503 PN40 Flat Face Flanges:

Nominal Pipe Size Diameter of Pipe Flange I.D No. of holes Flange Dia Thk of Flange Dia of Bolt Circle Dia of Bolt Holes Approx.Weight
DN ISO DIN D5 BN D b K d2 KG/PCS
10 14 14.5 4 90 16 60 14 0.7
17.2 17.7 4 90 16 60 14 0.69
15 20 21 4 95 16 65 14 0.77
21.3 22 4 95 16 65 14 0.77
20 25 26 4 105 18 75 14 1.06
26.9 27.6 4 105 18 75 14 1.05
25 30 31 4 115 18 85 14 1.27
33.7 34.4 4 115 18 85 14 1.25
32 38 39 4 140 18 100 18 1.86
42.4 43.1 4 140 18 100 18 1.83
40 44.5 45.5 4 150 18 110 18 2.12
48.3 49 4 150 18 110 18 2.09
50 57 58.1 4 165 20 125 18 2.78
60.3 61.1 4 165 20 125 18 2.74
65 76.1 77.1 8 185 22 145 18 3.48
80 88.9 90.3 8 200 24 160 18 4.33
100 108 109.6 8 235 24 190 22 5.82
114.3 115.9 8 235 24 190 22 5.61
125 133 134.8 8 270 26 220 26 7.91
139.7 141.6 8 270 26 220 26 7.6
150 159 161.1 8 300 28 250 26 10.12
168.3 170.5 8 300 28 250 26 9.58
175 193.7 196.1 12 350 32 295 30 14.45
200 219.1 221.8 12 375 34 320 30 16.9
250 267 270.2 12 450 38 385 33 27.28
273 276.2 12 450 38 385 33 26.51
300 323.9 327.6 16 515 42 450 33 36.38
350 355.6 359.7 16 580 46 510 36 52.83
368 372.2 16 580 46 510 36 50.24
400 406.4 411 16 660 50 585 39 74.71
419 423.7 16 660 50 585 39 71.44
500 508 513.6 20 755 52 670 42 86.87
600 610 616.5 20 890 54 795 48 121.84
700 711 716 24 995 58 900 48 150.93
800 813 818 24 1140 64 1030 56 219.08
900 914 920 28 1250 70 1140 56 271.16
1000 1016 1022 28 1360 78 1250 56 344.95
