Nipoflange / Weldoflange


Authoritative ANSI B16.5 / ASME B16.47 Nipoflange / Weldoflange Manufacturers in India.

ANSI B16.5 / ASME B16.47 Nipoflange / Weldoflange Manufacturers in India

As one of the leaders amongst Manufacturers, Stockist, and Exporters of Nipoflange, ASME B16.5 / ANSI B16.47 Weldoflange, We are offering competitive prices in India on DIN Nipoflange, Series A & B Weldoflange, MSS Nipoflange.

We keep adequate stock of SS Nipoflange, Alloy Steel Weldoflange, Nickel Alloy 200 Nipoflange, Carbon Steel Weldoflange, Inconel Nipoflange, Hastelloy Weldoflange, Copper Nickel Nipoflange, Duplex & Super Duplex Weldoflange, Alloy 20 Nipoflange in all Dimensions to satisfy any small and large quantity orders from our valuable customers.

Contact Us

PROFESSIONALLY MANAGED MANUFACTURING OF STAINLESS STEEL WELDO FLANGE / DUPLEX STEEL NIPO FLANGE / CARBON STEEL WELDO FLANGE / ALLOY STEEL NIPO FLANGE / HASTELLOY STEEL WELDO FLANGE / MONEL STEEL NIPO FLANGE / INCONEL STEEL WELDO FLANGE / SUPER DUPLEX STEEL NIPO FLANGE / INCOLOY STEEL WELDO FLANGE / ALLOY 20 NIPO FLANGE / 6% MOLY WELDO FLANGE / COPPER NICKEL STEEL NIPO FLANGE / NICKEL ALLOYS WELDO FLANGE / CUPRO NICKEL NIPO FLANGE / TITANIUM WELDO FLANGE / ALUMINIUM NIPO FLANGE / BRONZE WELDO FLANGE / BRASS NIPO FLANGE

Popular Product Searches on M P Jain Tubing Solutions LLP:
SO Flange | WN Flange | BL Flange | LJ Flange | Threaded Flange | SW Flange | Flat Flange | RTJ Flange | Spectacle Flange | High Hub Flange | Orifice Flange | Reducing Flange | Square Flange | Tongue Flange | LWN Flange | Spade Ring Spacer | Expander Flange

What is a Nipoflange / Weldoflange

The Nipoflange / Weldoflange is a combination of a Welding Neck flange and a supposedly Weldolet or Nipolet. On the run pipe side a nipoflange is designed like a weldolet. That means the branch connection on the run pipe side is a welding connection. On the other side, it has a flange connection. The flange connection can be designed according to customers requirements (acc. To DIN or ANSI).

Nipoflange / Weldoflange Specifications

Type : Nipoflange / Weldoflange
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Nipoflange / Weldoflange Materials & Grades

Materials : Standard, Grades
Stainless Steel Nipoflange / Weldoflange : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Nipoflange / Weldoflange : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Nipoflange / Weldoflange : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Nipoflange / Weldoflange : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Nipoflange / Weldoflange : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Nipoflange / Weldoflange : ASTM A350 LF2, LF3, LF6
High Yield Nipoflange / Weldoflange : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Nipoflange / Weldoflange : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Nipoflange / Weldoflange : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Nipoflange / Weldoflange : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Nipoflange / Weldoflange : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Nipoflange according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of Weldoflange Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 Weldo Flange. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Nipo Flange in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan, Israel etc.

Nipoflange / Weldoflange Price List

Following is Weldo Flange / Nipo Flange price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.

Latest Nipoflange / Weldoflange Price in Inda

Reference:alibaba

ASME B16.5 Nipoflange / Weldoflange Dimensions:

NIPOFLANGE DIMENSIONS AND WEIGHT
Nipoflange Dimensions & Weight

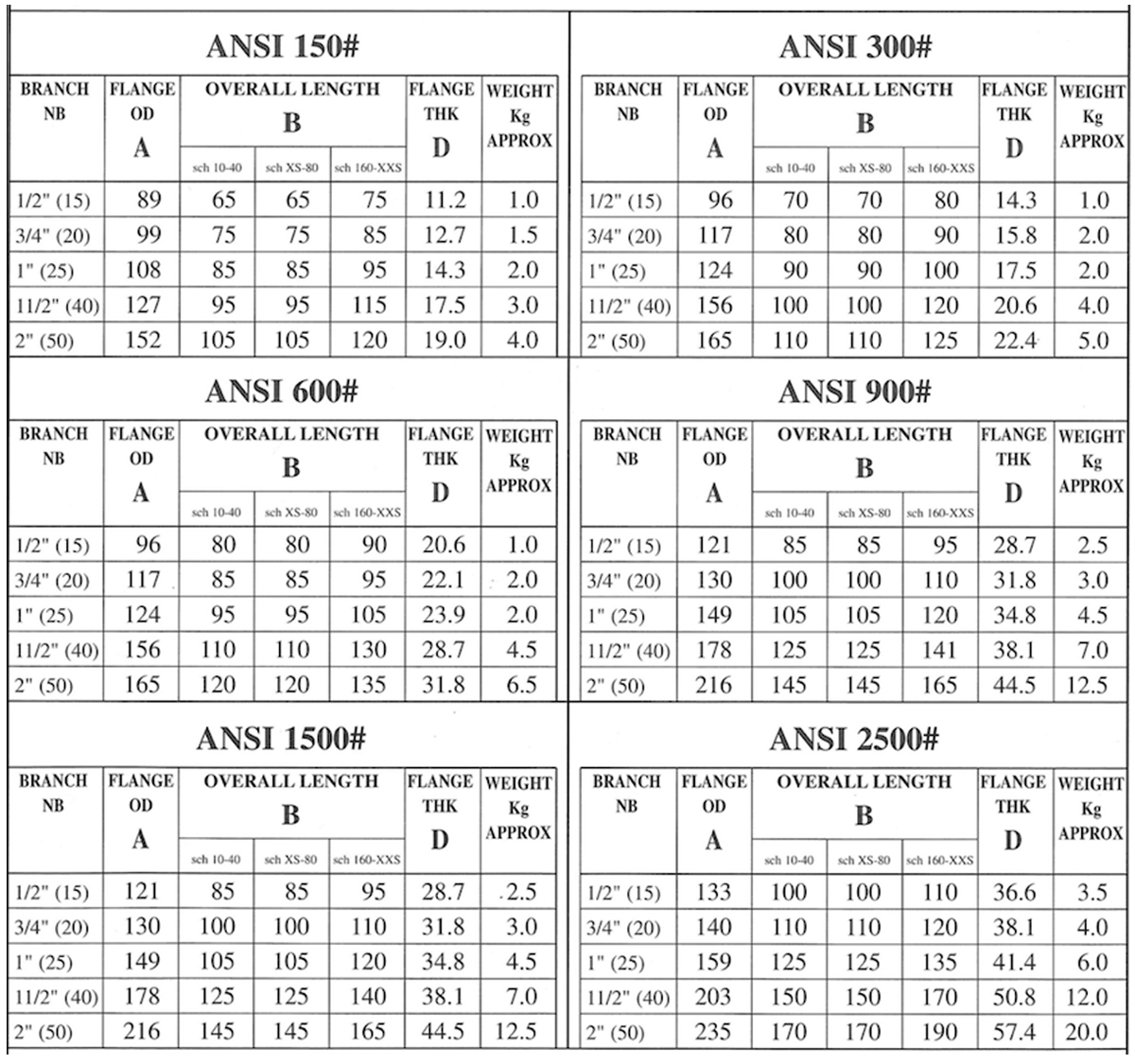

WELDOFLANGE DIMENSIONS AND WEIGHT
Weldoflange Dimensions & Weight
Weldolet Dimensions Chart

Schedule STD
Size Size in mm Height A OD -B Hole Dia C Weight in KG
1/4 8 14.3 25.4 15.9 0.04
3/8 10 19.05 31.75 19.05 0.07
1/2 15 19.05 34.93 23.81 0.08
3/4 20 22.23 44.45 30.16 0.11
1 25 26.99 53.98 36.51 0.23
1 1/4 32 31.75 65.09 44.45 0.36
1 1/2 40 33.34 73.03 50.8 0.45
2 50 38.1 88.9 65.09 0.79
2 1/2 65 41.28 103.19 76.2 1.13
3 80 44.45 122.24 93.66 1.81
3 1/2 90 47.63 142.88 112.71 2.5
4 100 50.8 152.4 120.65 2.86
5 130 57.15 179.3 141.29 4.65
6 150 60.33 215.9 169.86 6.44
8 200 69.85 263.53 220.66 10.66
10 250 77.79 322.26 274.64 17.69
12 300 85.73 377.83 325.44 26.76
14 350 88.9 409.58 357.19 29.94
16 400 93.6 463.55 407.99 34.02
18 450 96.84 520.7 458.79 44
20 500 101.6 571.5 508 53.52
24 600 144.5 717.5 609.6 101
26 650 155.6 778 660.4 120
30 750 174.6 893.6 762 190
36 900 206.4 1070 914.4 310
40 1000 225.4 1187.6 1016 435
42 1050 235 1244.6 1066.8 540
48 1200 241.3 1404 1219.2 750
Schedule XS
Size Size in mm Height – A OD – B Hole Dia – C Weight in KG
1/4 8 N/A 25.4 15.88 0.05
3/8 10 N/A 31.75 19.05 0.07
1/2 15 19.05 34.93 23.81 0.09
3/4 20 22.23 44.45 30.16 0.14
1 25 26.99 53.98 36.51 0.21
1 1/4 32 31.75 65.09 44.45 0.41
1 1/2 40 33.34 73.03 50.8 0.5
2 50 38.1 88.9 65.09 0.79
2 1/2 65 41.28 103.19 76.2 1.18
3 80 44.45 122.24 93.66 1.86
3 1/2 90 47.63 136.53 112.71 2.54
4 100 50.8 152.4 120.65 2.9
6 150 77.79 225.43 169.86 10.43
8 200 98.43 292.1 220.66 16.78
10 250 93.66 323.85 265.11 20.87
12 300 103.1 379.41 317.5 27.67
14 350 100.01 431.8 350.84 31.75
16 400 106.36 466.73 403.23 46.27
18 450 111.13 523.88 455.61 58.97
20 500 119.06 582.61 509.59 71.67
24 600 152.4 722.2 609.6 142
26 650 165.1 782.6 660.4 168
30 750 181 896.8 762 218
36 900 212.7 1074.4 914.4 404
40 1000 235 1194 1016 582
42 1050 244.5 1250.8 1066.8 590
48 1200 273 1425.6 1219.2 910
Schedule XXS
Size Size in mm Height – A OD – B Hole Dia – C Weight in KG
1/2 15 28.58 34.93 14.29 0.11
3/4 20 31.75 44.45 19.05 0.32
1 25 38.1 50.8 25.4 0.38
1 1/4 32 44.45 61.91 33.34 0.57
1 1/2 40 50.8 69.85 38.1 0.79
2 50 55.56 80.96 42.86 0.97
2 1/2 65 61.91 96.84 53.98 1.53
3 80 73.03 120.65 73.03 2.87
4 100 84.14 152.4 98.43 4.76
5 130 93.66 187.33 122.24 6.46
6 150 104.78 220.66 146.05 12.7
8 200 111.12 284.16 173.04 20.41
10 250 125.41 312.74 215.9 38.56
Schedule 160
Size Size in mm Height – A OD – B Hole Dia – C Weight in KG
1/2 15 28.58 34.93 14.29 0.11
3/4 20 31.75 44.45 19.05 0.32
1 25 38.1 50.8 25.4 0.38
1 1/4 32 44.45 61.91 33.34 0.57
1 1/2 40 50.8 69.85 38.1 0.79
2 50 55.56 80.96 42.86 0.97
2 1/2 65 61.91 96.84 53.98 1.53
3 80 73.03 120.65 73.03 2.87
4 100 84.14 152.4 98.43 4.76
5 130 93.66 187.33 122.24 6.46
6 150 104.78 220.66 146.05 12.7
8 200 111.12 284.16 173.04 20.41
10 250 125.41 312.74 215.9 38.56

Manufacturing Process of Nipoflange / Weldoflange

We have Skilled staff to maintain the quality of products throughout the manufacturing process from selection of raw material to processing, marking, packaging, storage, and transportation. Our Weldo Flange / Nipo Flange are 100% inspected before being packed and dispatched & all our materials are tested to International standards. Sometimes we also accept Third Party Inspection appointed by our clients.

Raw Material

Raw Material
  • » Raw Material Check
  • » Quantity Check
  • » Visual & Dimension Check
Material Inspection

Material Inspection
  • » Chemical Analysis Check
  • » Preservation Analysis Certificate
Material Cutting

Material Cutting
  • » Weight Measuring
  • » Cut Surface Check
  • » Marking
Flange Forging

Flange Forging
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Control
Heat Treatment

Heat Treatment
  • » Normalizing
  • » Tempering, Q.T
  • » Solution Treatment
  • » Mechanical Test
Forging Rolling

Forging Rolling
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Check
  • » Dimension Check
Final Inspection

Final Inspection
  • » Dimension size inspect
  • » Visual Test
  • » Nondestructive Test
Rust Prevention

Rust Prevention
  • » Preserve Check
  • » Marking on the flange
  • » Tectyl 506or Pickling or etc. Coating
Well Packing

Well Packing
  • » Packing Spec. Check
  • » Packing Inspection
  • » Delivery

Nipoflange / Weldoflange Applications & Uses

Today M P Jain Tubing Solutions LLP is one of the leading manufacturer, stockists, and exporters of Weldo Flanges / Nipo Flanges and supplying to various core industries like

Chemicals Fertilizers Industries
