What is a Slip on Flanges

Slip on Flanges is essentially a ring that is placed over the pipe end, with the flange face extending from the end of the pipe by enough distance to apply a weld bead on the inside diameter. The OD of slip-on flange is also welded on the back side of the Pipe flanges.

Slip on Flanges Specifications

Type : SO Forged Flange
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Slip on Flanges Materials & Grades

Materials : Standard, Grades
Stainless Steel Slip-on Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Slip-on Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Slip-on Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Slip-on Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Slip-on Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Slip-on Flanges : ASTM A350 LF2, LF3, LF6
High Yield Slip-on Flanges : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Slip-on Flanges : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Slip-on Flanges : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Slip-on Flanges : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Slip-on Flanges : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Slip on Flanges according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of SORF Flanges Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 SO Flanges. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Slip-on Flanges in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan etc.

Slip on Flanges Price List

Following is Slip on (SORF) Flanges price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.

Latest Slip on Flange Price in Inda

Reference:alibaba

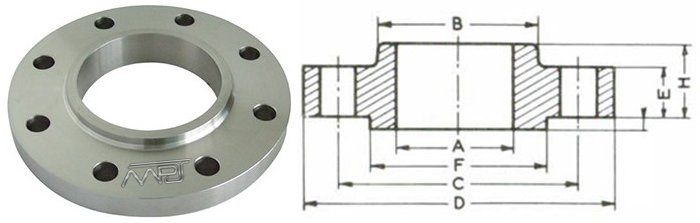

ASME B16.5 Slip on Flanges Dimensions:

Slip on Flange Dimensions
Slip on Flanges 150 Lbs Dimensions:

Drilling
Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(F)
Dia.
(B)
Dia.
(A)
Height1
(H)
Nbr Holes Dia.
(C)
1/2″ 90 9.6 35.05 30 22.2 14 4 15.87 60.3
3/4″ 100 11.2 42.93 38 27.7 14 4 15.87 69.9
1″ 110 12.7 50.80 49 34.5 16 4 15.87 79.4
1 1/4″ 115 14.3 63.50 59 43.2 19 4 15.87 88.9
1 1/2″ 125 15.9 73.15 65 49.5 21 4 15.87 98.4
2″ 150 17.5 91.95 78 61.9 24 4 19.05 120.7
2 1/2″ 180 20.7 104.65 90 74.6 27 4 19.05 139.7
3″ 190 22.3 127.00 108 90.7 29 4 19.05 152.4
3 1/2″ 215 22.3  139.70 122 103.4 30 8 19.05 177.8
4″ 230 22.3 157.22 135 116.1 32 8 19.05 190.5
5″ 255 22.3 185.67 164 143.8 35 8 22.22 215.9
6″ 280 23.9 215.90 192 170.7 38 8 22.22 241.3
8″ 345 27.0 269.75 246 221.5 43 8 22.22 298.5
10″ 405 28.6 323.85 305 276.2 48 12 25.40 362.0
12″ 485 30.2 381.00 365 327.0 54 12 25.40 431.8
14″ 535 33.4 412.75 400 359.2 56 12 28.57 476.3
16″ 595 35.0 469.90 457 410.5 62 16 28.57 539.8
18″ 635 38.1 533.40 505 461.8 67 16 31.75 577.9
20″ 700 41.3 584.20 559 513.1 71 20 31.75 635.0
24″ 815 46.1 692.15 663 616.0 81 20 34.92 74

Note: 1,6mm raised face not included in the E & H dimensions

Slip on Flanges 300 Lbs Dimensions:

Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(F)
Dia.
(B)
Dia.
(A)
Height1
(H)
Nbr Holes Dia.
(C)
1/2″ 21.3 12.7 35.05 38 22.2 21 4 15.87 66.7
3/4″ 26.7 14.3 42.93 48 27.7 24 4 19.05 82.6
1″ 33.4 15.9 50.80 54 34.5 25 4 19.05 88.9
1 1/4″ 42.2 17.5 63.50 64 43.2 25 4 19.05 98.4
1 1/2″ 48.3 19.1 73.15 70 49.5 29 4 22.22 114.3
2″ 60.3 20.7 91.95 84 61.9 32 8 19.05 127.0
2 1/2″ 73.0 23.9 104.65 100 74.6 37 8 22.22 149.2
3″ 88.9 27.0 127.00 117 90.7 41 8 22.22 168.3
3 1/2″ 101.6 28.6 139.70 133 103.4 43 8 22.22 184.2
4″ 114.3 30.2 157.22 146 116.1 46 8 22.22 200.0
5″ 141.3 33.4 185.67 178 143.8 49 8 22.22 235.0
6″ 168.3 35.0 215.90 206 170.7 51 12 22.22 269.9
8″ 219.1 39.7 269.75 260 221.5 60 12 25.40 330.2
10″ 273.0 46.1 323.85 321 276.2 65 16 28.57 387.4
12″ 323.8 49.3 381.00 375 327.0 71 16 31.75 450.8
14″ 355.6 52.4 412.75 425 359.2 75 20 31.75 514.4
16″ 406.4 55.6 469.90 483 410.5 81 20 34.92 571.5
18″ 457.0 58.8 533.40 533 461.8 87 24 34.92 628.6
20″ 508.0 62.0 584.2td> 587 513.1 94 24 34.92 685.8
24″ 610.0 68.3 692.15 702 616.0 105 24 41.27 812.8

Note: 1,6mm raised face not included in the E & H dimensions

Slip on Flanges 600 Lbs Dimensions:

Drilling
Nominal Bore Dia.
(D)
Thick.
(E)
Dia.
(F)
Dia.
(B)
Dia.
(A)
Height1
(H)
Nbr Holes Dia.
(C)
1/2″ 21.3 14.3 35.05 38 22.2 22 4 15.87 66.7
3/4″ 26.7 15.9 42.93 48 27.7 25 4 19.05 82.6
1″ 33.4 17.5 50.80 54 34.5 27 4 19.05 88.9
1 1/4″ 42.2 20.7 63.50 64 43.2 29 4 19.05 98.4
1 1/2″ 48.3 22.3 73.15 70 49.5 32 4 22.22 114.3
2″ 60.3 25.4 91.95 84 61.9 37 8 19.05 127.0
2 1/2″ 73.0 28.6 104.65 100 74.6 41 8 22.22 149.2
3″ 88.9 31.8 127.00 117 90.7 46 8 22.22 168.3
3 1/2″ 101.6 35.0 139.70 133 103.4 49 8 25.40 184.2
4″ 114.3 38.1 157.22 152 116.1 54 8 25.40 215.9
5″ 141.3 44.5 185.67 189 143.8 60 8 28.57 266.7
6″ 168.3 47.7 215.90 222 170.7 67 12 28.57 292.1
 8″ 219.1 55.6 269.75 273 221.5 76 12 31.75 349.2
 10″ 273.0 63.5 325.85 343 276.2 86 16 34.92 431.8
 12″ 323.8 66.7 381.00 400 327.0 92 20 34.92 489.0
 14″ 355.6 69.9 412.75 432 359.2 94 20 38.10 527.0
 16″ 406.4 76.2 469.90 495 410.5 106 20 41.27 603.2
 18″ 457.0 82.6 533.40 546 461.8 117 20 44.45 654.0
 20″ 508.0 88.9 584.20 610 513.1 127 24 44.45 723.9
 24″ 610.0 101.6 692.15 718 616.0 140 24 50.80 838.2

Note: 6,4 raised face not included in the E & H dimensions

ASME B16.5 Slip On Flanges Dimensional Tolerances

Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
Inside Diameter
≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore
Same as for Inside Diameter
Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0
Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

Manufacturing Process of Slip on Flanges

We have Skilled staff to maintain the quality of products throughout the manufacturing process from selection of raw material to processing, marking, packaging, storage, and transportation. Our Slip-on Flanges are 100% inspected before being packed and dispatched & all our materials are tested to International standards. Sometimes we also accept Third Party Inspection appointed by our clients.

Raw Material

Raw Material
  • » Raw Material Check
  • » Quantity Check
  • » Visual & Dimension Check
Material Inspection

Material Inspection
  • » Chemical Analysis Check
  • » Preservation Analysis Certificate
Material Cutting

Material Cutting
  • » Weight Measuring
  • » Cut Surface Check
  • » Marking
Flange Forging

Flange Forging
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Control
Heat Treatment

Heat Treatment
  • » Normalizing
  • » Tempering, Q.T
  • » Solution Treatment
  • » Mechanical Test
Forging Rolling

Forging Rolling
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Check
  • » Dimension Check
Final Inspection

Final Inspection
  • » Dimension size inspect
  • » Visual Test
  • » Nondestructive Test
Rust Prevention

Rust Prevention
  • » Preserve Check
  • » Marking on the flange
  • » Tectyl 506or Pickling or etc. Coating
Well Packing

Well Packing
  • » Packing Spec. Check
  • » Packing Inspection
  • » Delivery

Slip on Flanges Applications & Uses

Today M P Jain Tubing Solutions LLP is one of the leading manufacturer, stockists, and exporters of SO Flanges and supplying to various core industries like

Chemicals Fertilizers Industries

Chemicals Fertilizers Industries
Heat Exchanger

Heat Exchanger
Instrumentation

Instrumentation
Nuclear Thermal Industries

Nuclear Thermal Industries
Oil Gas Industries

Oil Gas Industries
Pharmacy Surgical Industries

Pharmacy Surgical Industries
Refineries Petrochemicals

Refineries Petrochemicals
Water Gas Piping Systems

Water Gas Piping Systems
