SW / Socket Weld Flanges


Authoritative ANSI B16.5 / ASME B16.47 Socket Weld Flanges Manufacturers in India.

ANSI B16.5 / ASME B16.47 Socket Weld Flanges Manufacturers in India

As one of the leaders amongst Manufacturers, Stockist, and Exporters of Raised Face Socket Weld Flange, ASME B16.5 / ANSI B16.47 Socket Weld Flange, We are offering competitive prices in India on DIN Socket Weld Flange, Series A & B SWRF Flanges, MSS Socket Weld Flange.

We keep adequate stock of SS Socket Weld Flanges, Alloy Steel Socket Weld Flanges, Nickel Alloy 200 SW Flange, Carbon Steel Socket Weld Flange, Inconel Socket Weld Flange, Hastelloy Socket Weld Flange, Copper Nickel SWRF Flanges, Duplex & Super Duplex Socket Weld Flange, Alloy 20 Socket Weld Flange in all Dimensions to satisfy any small and large quantity orders from our valuable customers.

Contact Us

PROFESSIONALLY MANAGED MANUFACTURING OF STAINLESS STEEL SOCKET WELD FLANGE / DUPLEX STEEL SOCKET WELD FLANGE / CARBON STEEL SOCKET WELD FLANGE / ALLOY STEEL SOCKET WELD FLANGE / HASTELLOY STEEL SOCKET WELD FLANGE / MONEL STEEL SOCKET WELD FLANGE / INCONEL STEEL SOCKET WELD FLANGE / SUPER DUPLEX STEEL SOCKET WELD FLANGE / INCOLOY STEEL SOCKET WELD FLANGE / ALLOY 20 SOCKET WELD FLANGE / 6% MOLY SOCKET WELD FLANGE / COPPER NICKEL STEEL SOCKET WELD FLANGE / NICKEL ALLOYS SOCKET WELD FLANGE / CUPRO NICKEL SOCKET WELD FLANGE / TITANIUM SOCKET WELD FLANGE / ALUMINIUM SOCKET WELD FLANGE / BRONZE SOCKET WELD FLANGE / BRASS SOCKET WELD FLANGE

Popular Product Searches on M P Jain Tubing Solutions LLP:
SO Flange | WN Flange | BL Flange | LJ Flange | Threaded Flange | Flat Flange | RTJ Flange | Spectacle Flange | High Hub Flange | Orifice Flange | Reducing Flange | Square Flange | Tongue Flange | LWN Flange | Spade Ring Spacer | Nipo / Weldo Flange | Expander Flange

What is a Socket Weld Flanges

Socket weld flanges are typically used on smaller sizes of high-pressure pipes. These socket-weld pipe flanges are attached by inserting the pipe into the socket end and applying fillet weld around the top. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe.

Socket-weld flanges were initially developed for use on small-size high pressure piping. Socket-Weld Flanges has a female socket in which pipe is fitted. Fillet welding is done from outside on the pipe.

Socket Weld Flanges Specifications

Type : Socket Weld (SW) Flange
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Socket Weld Flanges Materials & Grades

Materials : Standard, Grades
Stainless Steel Socket Weld Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Socket Weld Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Socket Weld Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Socket Weld Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Socket Weld Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Socket Weld Flanges : ASTM A350 LF2, LF3, LF6
High Yield Socket Weld Flanges : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Socket Weld Flanges : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Socket Weld Flanges : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Socket Weld Flanges : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Socket Weld Flanges : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Socket Weld Flanges according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of SWRF Flanges Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 SW Flanges. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Socket Weld Flanges in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan etc.

Socket Weld Flanges Price List

Following is Socket Weld (SWRF) Flanges price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.

Latest Socket Weld Flange Price in Inda

Reference:alibaba

ASME B16.5 Socket Weld Flanges Dimensions:

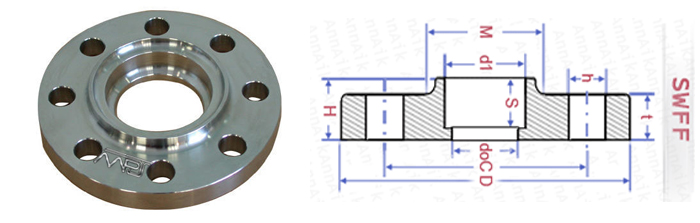

Socket Weld Flange Dimensions
Socket Weld Flanges 150 Lbs Dimensions:

  Drilling
Nominal Bore  Dia.
(D)
Thick.
(E)
Dia.
(F)
Dia.
(B)
Dia.
(A)
Height1
(H)
Nbr Holes Dia.
(C)
1/2″ 90 11.2 35.05 30 22.2 14 4 15.87 60.3
3/4″ 100 12.7 42.92 38 27.7 14 4 15.87 69.9
1″ 110 14.3 50.80 49 34.5 16 4 15.87 79.4
1 1/4″ 115 15.9 63.50 59 43.2 19 4 15.87 88.9
1 1/2″ 125 17.5 73.15 65 49.5 21 4 15.87 98.4
2″ 150 19.1 91.94 78 61.9 24 4 19.05 120.7
2 1/2″ 180 22.3 104.65 90 74.6 27 4 19.05 139.7
3″ 190 23.9 127.00 108 90.7 29 4 19.05 152.4

IMP. NOTES: 1,6mm raised face not included in the E & H dimensions
The dimensions are in millimeters

Socket Weld Flanges 300 Lbs Dimensions:

Drilling
Nominal Bore  Dia.
(D)
Thick.
(E)
Dia.
(F)
Dia.
(B)
Dia.
(A)
Height1
(H)
Nbr Holes Dia.
(C)
1/2″ 95 12.7 35.05 38 22.2 21 4 15.87 66.7
3/4″ 115 14.3 42.92 48 27.7 24 4 19.05 82.6
1″ 125 15.9 50.80 54 34.5 25 4 19.05 88.9
1 1/4″ 135 17.5 63.50 64 43.2 25 4 19.05 98.4
1 1/2″ 155 19.1 73.15 70 49.5 29 4 22.22 114.3
2″ 165 20.7 91.94 84 61.9 32 8 19.05 127.0
2 1/2″ 190 23.9 104.65 100 74.6 37 8 22.22 149.2
3″ 210 27.0 127.00 117 90.7 41 8 22.22 168.3

IMP. NOTES: 1,6mm raised face not included in the E & H dimensions
The dimensions are in millimeters

Socket Weld Flanges 600 Lbs Dimensions:

Drilling
Nominal Bore >Dia.
(D)
Thick.
(E)
Dia.
(F)
Dia.
(B)
Dia.
(A)
Height1
(H)
Nbr Holes Dia.
(C)
1/2″ 95 14.3 35.05 38 22.2 22 4 15.87 66.7
3/4″ 115 15.9 42.92 48 27.7 25 4 19.05 82.6
1″ 125 17.5 50.80 54 34.5 27 4 19.05 88.9
1 1/4″ 135 20.7 63.50 64 43.2 29 4 19.05 98.4
1 1/2″ 155 22.3 73.15 70 49.5 32 4 22.22 114.3
2″ 165 25.4 91.94 84 61.9 37 8 19.05 127.0
2 1/2″ 190 28.6 104.65 100 74.6 41 8 22.22 149.2
3″ 210 31.8 127.00 117 90.7 46 8 22.22 168.3

IMP. NOTES: 6,4mm raised face not included in the E & H dimensions
The dimensions are in millimeters

Inner diameter depending on thicknesses:

Nominal Bore SCH10S SCH40S SCH80S SCH160
1/2″ 17.1 15.8 13.9 11.8
3/4″ 22.4 20.9 18.8 15.6
1″ 27.8 26.6 24.3 20.7
1 1/4″ 36.6 35.1 32.5 29.5
1 1/2″ 42.7 40.9 38.1 34
2″ 54.7 52.5 49.2 42.9
2 1/2″ 66.9 62.7 59 54
3″ 82.8 77.9 73.7 66.7

IMP. NOTE: The dimensions are in millimeters

ASME B16.5 Socket Weld Flanges Dimensional Tolerances

Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm
Inside Diameter
≤ 10 = ± 0.8 mm | ≥ 12 = + 1.6 mm / – 0 mm
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm
Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm
Diameter of Counterbore
Same as for Inside Diameter
Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0
Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

Manufacturing Process of Socket Weld Flanges

We have Skilled staff to maintain the quality of products throughout the manufacturing process from selection of raw material to processing, marking, packaging, storage, and transportation. Our Socket Weld Flanges are 100% inspected before being packed and dispatched & all our materials are tested to International standards. Sometimes we also accept Third Party Inspection appointed by our clients.

Raw Material

Raw Material
  • » Raw Material Check
  • » Quantity Check
  • » Visual & Dimension Check
Material Inspection

Material Inspection
  • » Chemical Analysis Check
  • » Preservation Analysis Certificate
Material Cutting

Material Cutting
  • » Weight Measuring
  • » Cut Surface Check
  • » Marking
Flange Forging

Flange Forging
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Control
Heat Treatment

Heat Treatment
  • » Normalizing
  • » Tempering, Q.T
  • » Solution Treatment
  • » Mechanical Test
Forging Rolling

Forging Rolling
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Check
  • » Dimension Check
Final Inspection

Final Inspection
  • » Dimension size inspect
  • » Visual Test
  • » Nondestructive Test
Rust Prevention

Rust Prevention
  • » Preserve Check
  • » Marking on the flange
  • » Tectyl 506or Pickling or etc. Coating
Well Packing

Well Packing
  • » Packing Spec. Check
  • » Packing Inspection
  • » Delivery

Socket Weld Flanges Applications & Uses
